Column lift for special vehicles - 10t
1200M100 / 1600M100

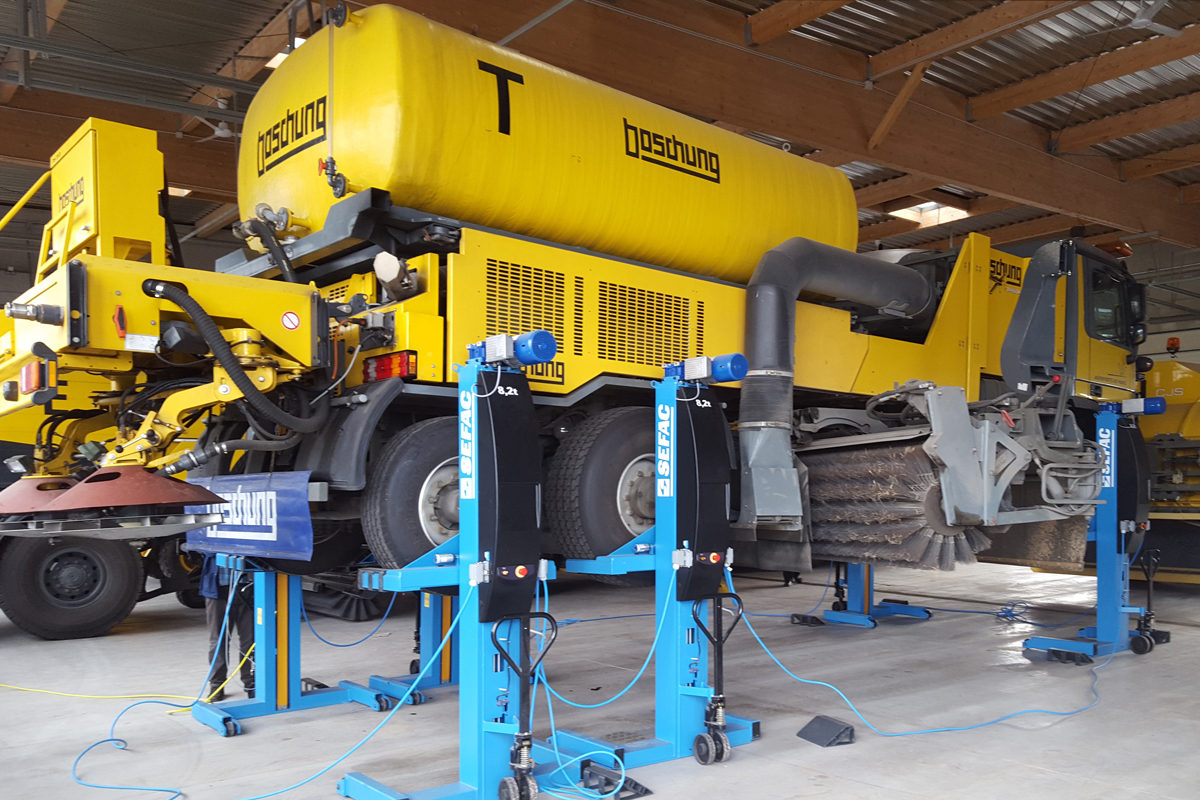

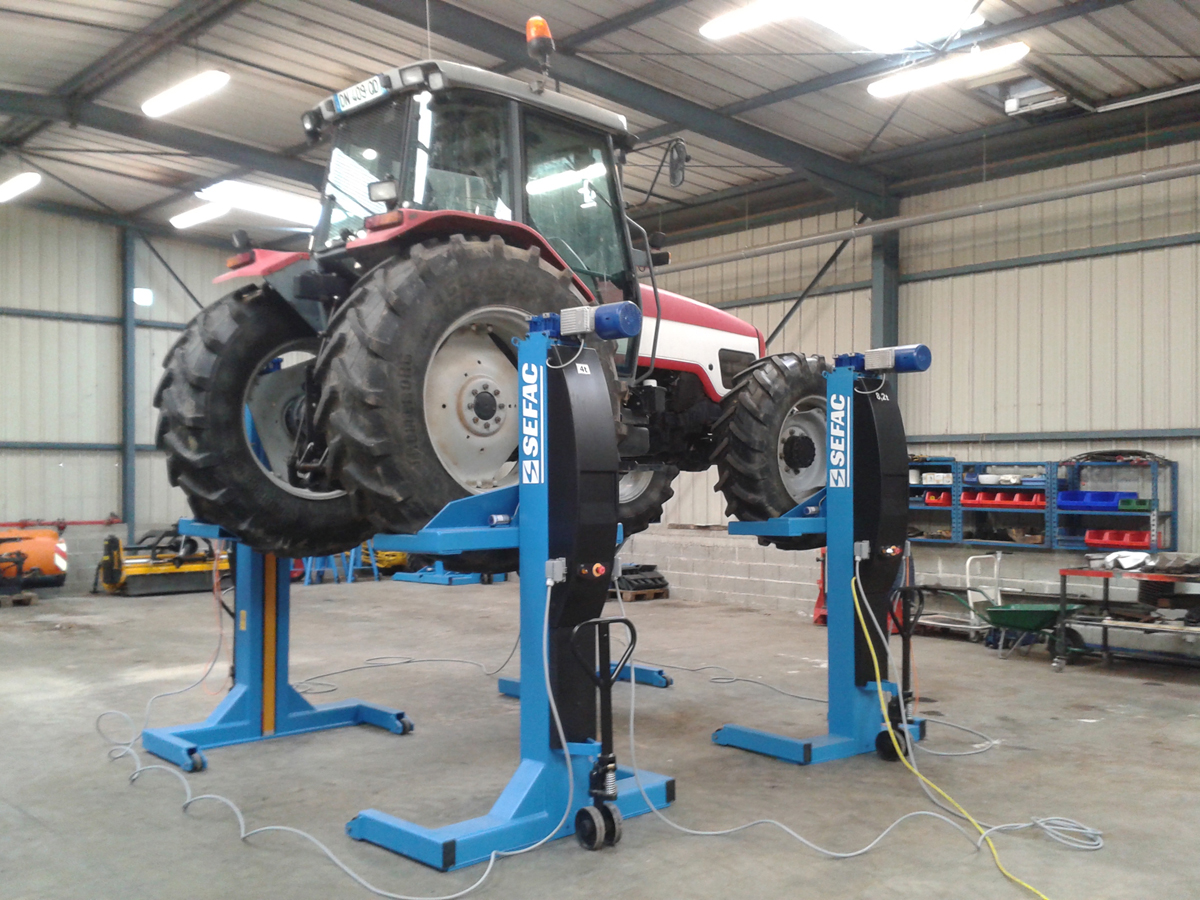

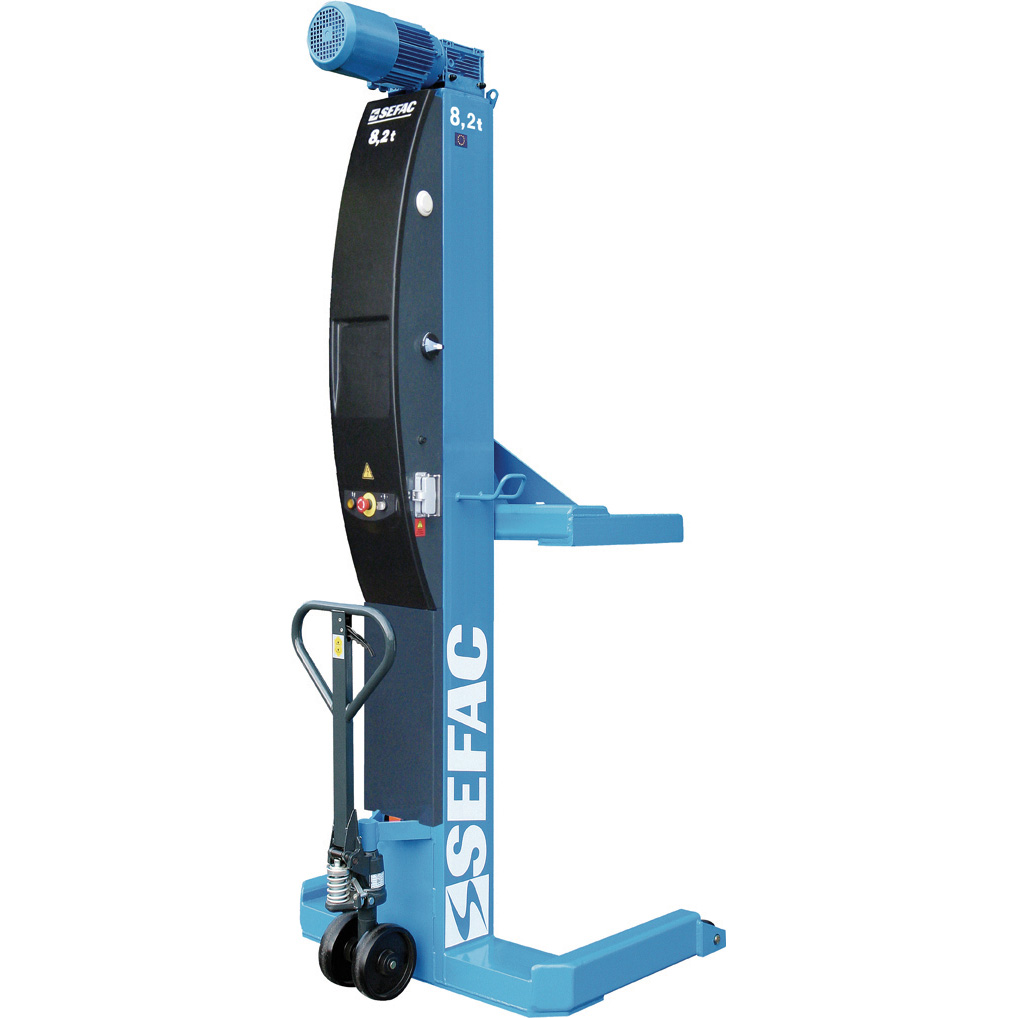

SEFAC has designed mobile column lifts for heavy duty vehicles with a lifting capacity of 10t per column.
The 1200M100 and 1600M100 columns are suitable for vehicles up to 40 tons.
The 1200M100 column has been designed for vehicles with a tire diameter of between 962 mm and 1,154 mm. The 1600M100 column is intended for vehicles with a tire diameter between 1,150mm and 1,486mm.
SEFAC++ features
- The lightest columns on the market, streamlined by design and easy to manoeuvre
- Irreversible system that prevents the risk of falling
- Maximum safety for operators
- Reverse pallet truck-type drawbar, deadman’s control
- Obstacle detection
- Patented bronze nut quick change device, worn nuts can be changed at your site within minutes
- Electrical protection: IP54
Read about our technological solutions: Screw/nut system
Technical characteristics
Reference | 1200M100 | 1600M100 |
Capacity per column | 10t | 10t |
Cofiguration (number of columns connected) | 2 / 4 / 6 / 8 | 2 / 4 / 6 / 8 |
Connection mode | Loop - Wired | Loop - Wired |
Operating mode | Individual, pair, set | Individual, pair, set |
Control mode | Push button + Remote control | Push button + Remote control |
Screen | No | No |
Fork width | 962 to 1 154 mm | 1 150 to 1 486 mm |
Lifting speed | 680 mm/min | 680 mm/min |
Lifting height | 1 820 mm | 1 820 mm |
Spacing | 1 070 l (mm) | 1 250 l (mm) |
x 1 100 L (mm) | x 1 100 L (mm) | |
x 2 540 h (mm) | x 2 535 h (mm) | |
Feet height | 140 mm | 140 mm |
Weight per column | 385 kg | 415 kg |
Engine power | 3,5 kW | 2,9 kW |
Protection rating | IP54 | IP54 |
Sound level | < 75 dB | < 75 dB |
