Floor transmission jack
DFA 6115 / DFH 6115 / DFM 6115
SEFAC offers a range of jacks with a lifting capacity of 1.5t and lifting heights from 1,000 mm to 2,020 mm to provide comfort and flexibility during your maintenance operations.

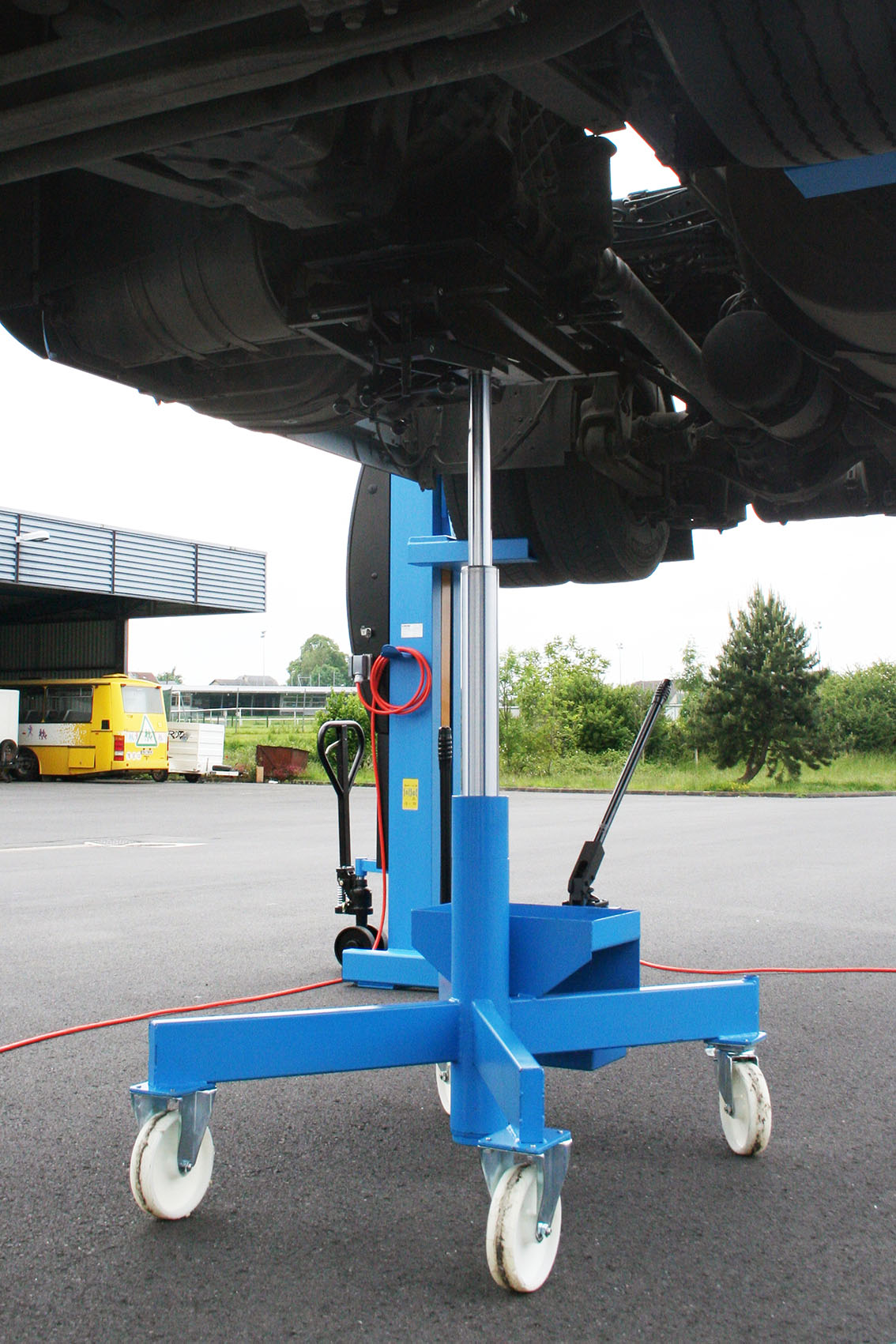

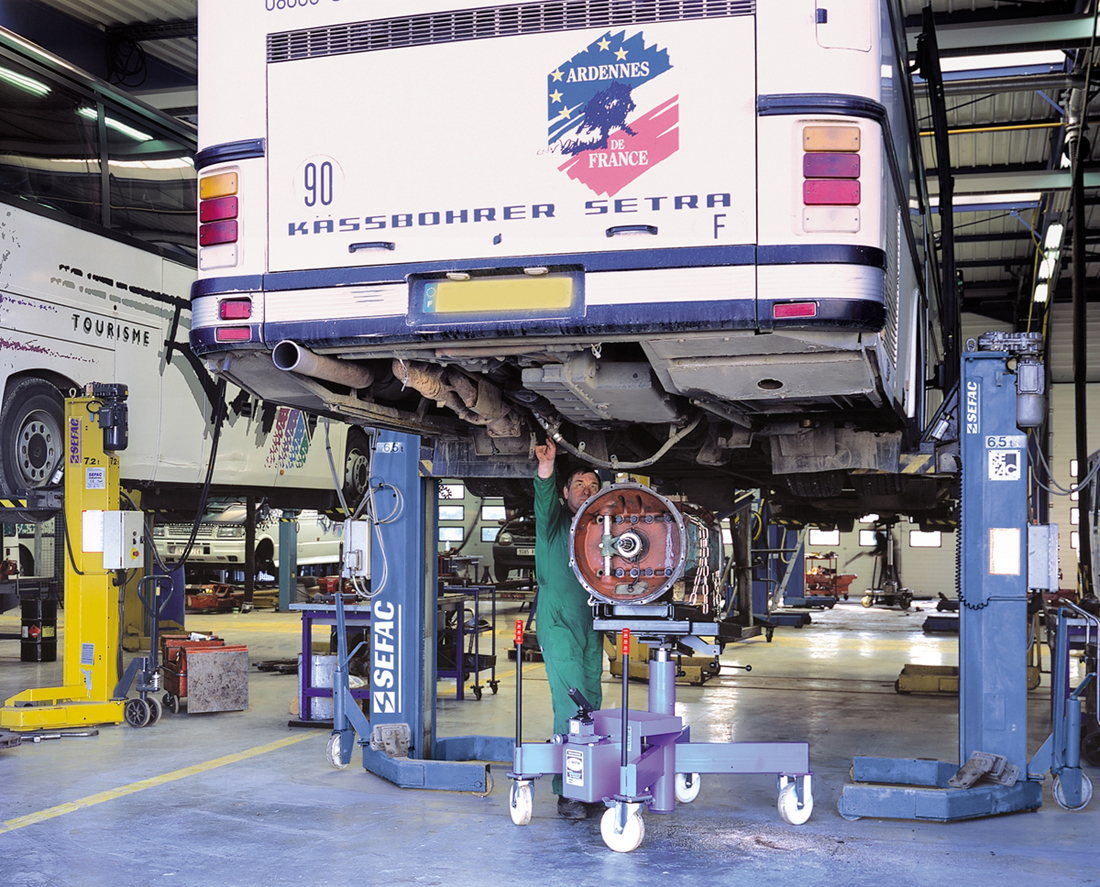

SEFAC floor transmission jacks have been designed for work under vehicle lifts and provide great stability. They feature a swivel head and a multidirectional plate with crossed movements to simplify your operations. They are fitted with wheels so you can move the engine blocks in your workshop or inside the pit without difficulty.
SEFAC floor transmission jacks are available in three versions. Please refer to the technical chart.
- Manual lifting *
- Oleopneumatic lifting **
- Manual + oleopneumatic lifting ***
Technical characteristics
| Reference | DFM 6115* | DFH 6115** | DFA 6115*** |
| Capacity | 1,5t | 1,5t | 1,5t |
| Height min. | 1 000 mm | 1 000 mm | 1 000 mm |
| Height max. | 2 020 mm | 2 020 mm | 2 020 mm |
| Stroke | 1 020 mm | 1 020 mm | 1 020 mm |
| Diam. 1° piston | 50 mm | 50 mm | 50 mm |
| Diam. 2° piston | 80 mm | 80 mm | 80 mm |
| Diam. wheels | 200 mm | 200 mm | 200 mm |
| Tilting table | 480 x 850 | 480 x 850 | 480 x 850 |
| Lenght | 1 250 mm | 1 250 mm | 1 250 mm |
| Width | 850 mm | 850 mm | 850 mm |
| Weight | 175 kg | 175 kg | 175 kg |
| Pump | Manual | Oleopneumatic | Manual + oleopneumatic |
