Floor transmission jack
DFM 6112 / DFA 6112
SEFAC has developed this transmission jack with a lifting capacity of 1.5t and a lifting height of 850 mm to 2080 mm* to allow you to carry out your maintenance with even more flexibility. With its compact cross shape frame with a length of 720 mm and a width of 680 mm and its lighter weight of 80 kg, it will now be easier for you to access the narrowest pits. The 6112 range benefits from the same stability of all SEFAC transmission jacks, allowing you to carry out your work in complete safety.
*Height with adjustable head adaptor
Two models are available:

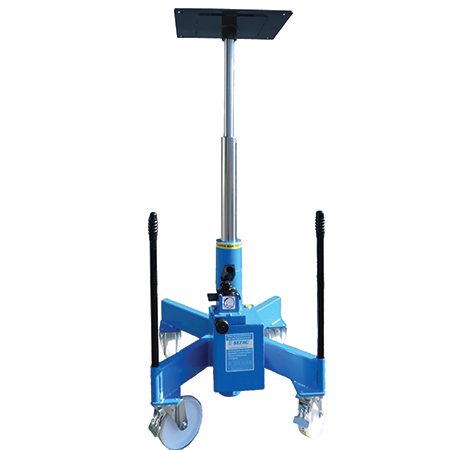

- Head with fixed plate

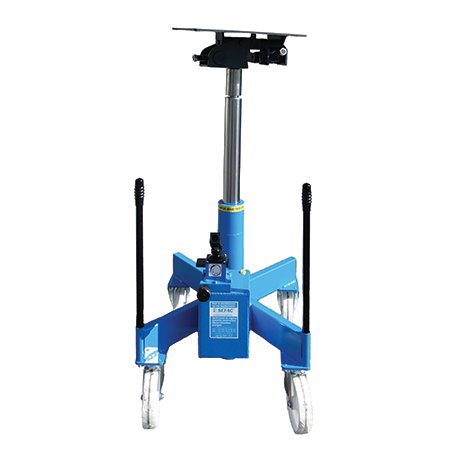

- Swivel head with 25° tilting table
The adjustable head has been designed to facilitate your operations and ensure maximum flexibility and safety. Equipped with 4 wheels, they allow you to move the engine and transmission blocks in your workshop or inside the pit with ease.
For enhanced safety they are designed with:
- A load limiter
- A safety valve
- A “dead man” type descent valve on the hand pump
- Two swivel wheels with brakes
SEFAC transmission jacks are available in 2 versions:
- Manual pump *
- Pump with pneumatic assistance for rapid approach **
Technical characteristics
| DFM 6112* | ||
| Head/Tray | Fixed head | Swivel head |
| COZ 664 |
COZ 6160 + adapter |
|
| Tray dimensions | 400 mm x 500 mm | 400 mm x 500 mm |
| Capacity | 1,5t | 1,5t |
| Min height | 850 mm | 1071 mm |
| Max height | 1860 mm | 2081 mm |
| Stroke | 1010 mm | 1010 mm |
| Ø 1° piston | 50 mm | 50 mm |
| Ø 2° piston | 80 mm | 80 mm |
| Ø wheels | 200 mm | 200 mm |
| Frame length | 500 mm | 500 mm |
| Frame width | 400 mm | 400 mm |
| Weight | 80 kg | 90 kg |
| Pump | Manual | Manual |
| DFA 6112** | ||
| Pump in option | Pump with pneumatic assistance for rapid approach | |
