Trestle
SEFAC offers a range of 14t capacity trestles with lifting heights from 320 mm to 1,820 mm. This equipment has been designed to support and stabilize heavy vehicles and loads other units. SEFAC trestles are suitable for tracked vehicles and semi-trailers.
The TAE516 trestles benefit from 4 swivel wheels (which retract under 120kg load). The TAE512 offers these retractable wheels as an option. The TAE 516 trestles have been designed with two springs for easy positioning.
SEFAC++ features
- Optimum stability
- Versatility
- Reliability
- Sturdiness
- Maximum safety
Technical characteristics

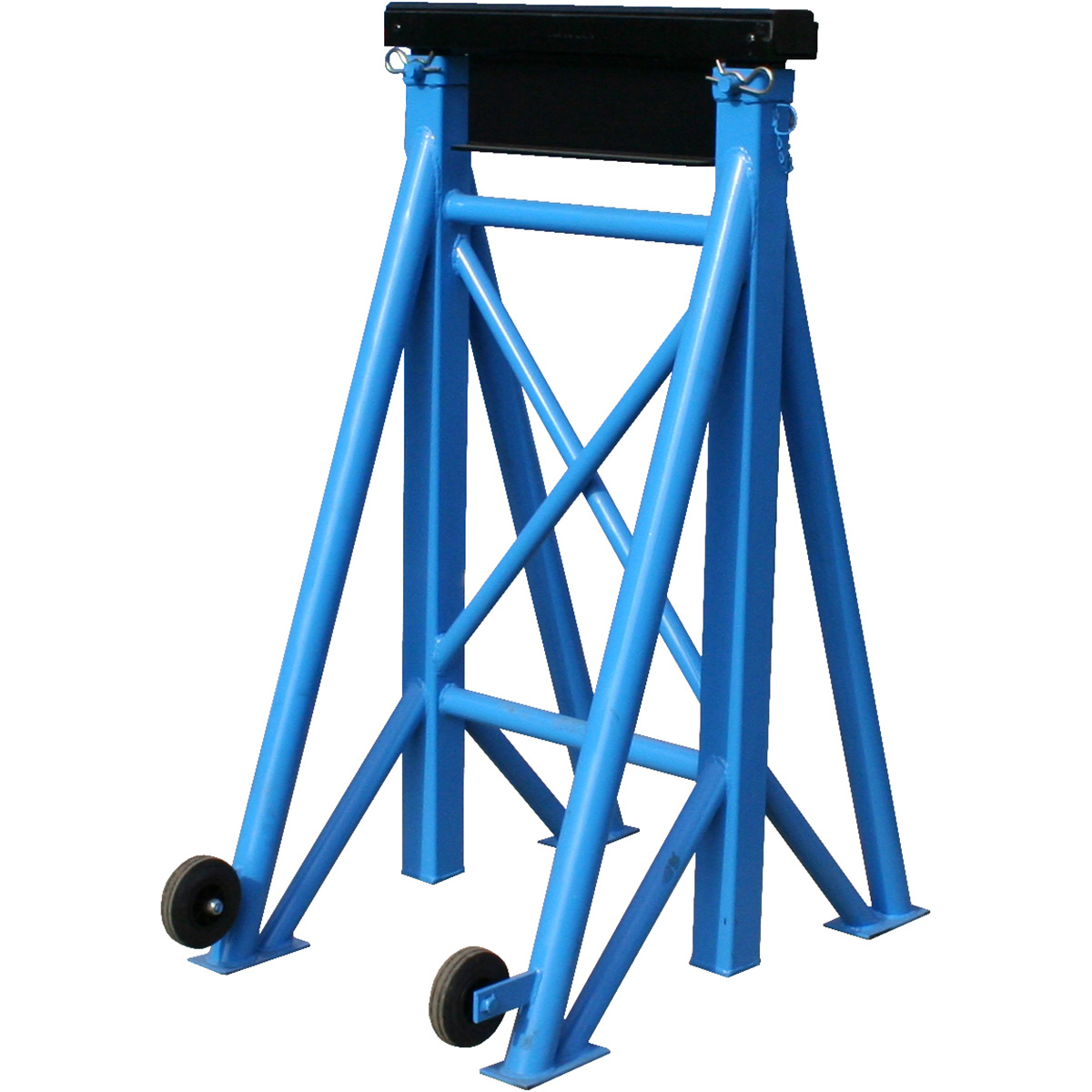

| Reference | Trestle TAE 511 | Trestle TAE 512 | Trestle TAE 515 | Trestle TAE 516 |
| Capacity | 14t | 14t | 14t | 14t |
| Height min. | 320 mm | 520 mm | 1 300 mm | 1 320 mm |
| Height max. | 470 mm | 820 mm | 1 850 mm | 1 750 mm |
| Width | 365 mm | 470 mm | 690 mm | 1 200 mm |
| Stroke | 150 mm | 300 mm | 550 mm | 430 mm |
| Positions | 4 | 7 | 12 | 7 |
| Weight | 19 kg | 31 kg | 70 kg | 100 kg |
| Options | 4 retractable swivel wheels (which retract under 120kg load) |
