Oleopneumatic jack
SEFAC’s oleopneumatic jacks have been designed to lift vehicles to allow you to safely perform maintenance work. We offer a wide range of oleopneumatic jacks depending on the desired lifting height and the load to be lifted to meet your every need.
Our jacks are made of high resistance materials and all comply with Machinery Directive 2006/42/EC and are approved according to European standard EN1494
SEFAC++ features
- Robust and reliable
- Optimum safety due to a parachute valve as well as dual lowering valve
- Delivered with stackable extensions
SEFAC offers a special forklift jack. Refer to the technical chart.
Technical characteristics
| Reference | Height (min - max) | Height max. with extensions | Capacity 1°/2°/3°/4° piston | Weight |
| Cric CRH 215N * | 150-300 mm | 500 mm | 40t/20t/-/- | 39 kg |
| Cric CRH 217N * | 170-340 mm | 540 mm | 40t/20t/-/- | 41 kg |
| Cric CRH 218N * | 180-340 mm | 540 mm | 60t/30t/-/- | 68 kg |
| Cric CRH 222N * | 220-450 mm | 650 mm | 60t/30t/-/- | 71kg |
| Cric CRH 315L * | 150-335 mm | 535 mm | 60t/30t/18t/- | 46kg |
| Cric CRH 318N * | 180-415 mm | 615 mm | 60t/30t/18t/- | 69 kg |
| Cric CRH 415N * | 150-400 mm | 600 mm | 70t/43t/23t/13t | 77 kg |
| Cric CRH 418N * | 180-480 mm | 680 mm | 70t/43t/23t/13t | 77 kg |
| Cric CPH 215P * | 150-300 mm | 500 mm | 40t/20t/-/- | 35 kg |
| Cric CPH 217P * | 170-340 mm | 540 mm | 40t/20t/-/- | 37 kg |
| Cric CPH 221P * | 215-465 mm | 665 mm | 40t/20t/-/- | 42 kg |
| Cric CRH 8251 ** | 360-610 mm | 760 mm | 25t/-/-/- | 71 kg |
| Cric CRH 8252 ** | 180-380 mm | 530 mm | 25t/10t/-/- | 60 kg |
| Cric CRH 8502 ** | 220-450 mm | 600 mm | 50t/25t/-/- | 80 kg |
| Cric CRH 8503 ** | 150-335 mm | 485 mm | 50t/25t/10t/- | 67 kg |
| Cric CPH 2502 ** | 160-320 mm | 470 mm | 25t/10t/-/- | 28 kg |
| Cric CRHK01 *** | 25-395/350-500 mm | 690 mm | 05t/09t | 30 kg |
*: Equipment supplied as standard with 3 stackable extensions of 10, 70 and 120 mm.
Air pressure required at the jack inlet: 8 to 10 bar
**: Equipment delivered as standard with 2 stackable extensions of 50 and 100 mm.
Air pressure required at the jack inlet: 9 to 12 bar
Our range also has portable jacks (reference CPH ~).
Among these, the CPH 2502 is unquestionably the most accomplished:
- featherweight of only 28 kg,
- easy to handle – control valve, lever and carrying handle combined into a single function,
- neat ergonomics (no protruding element: hose, valve or handle),
- ideal for intervention vehicles,
- transport safety thanks to its wall bracket (optional) allowing risk-free transport in intervention vehicles or optimized storage in the workshop,
- integrated safety valve in case of overload,
- chrome-plated piston for optimal lifespan,
- manual "deadman" control for maximum downhill safety,
- delivered as standard with two extensions of 50 and 100 mm respectively.

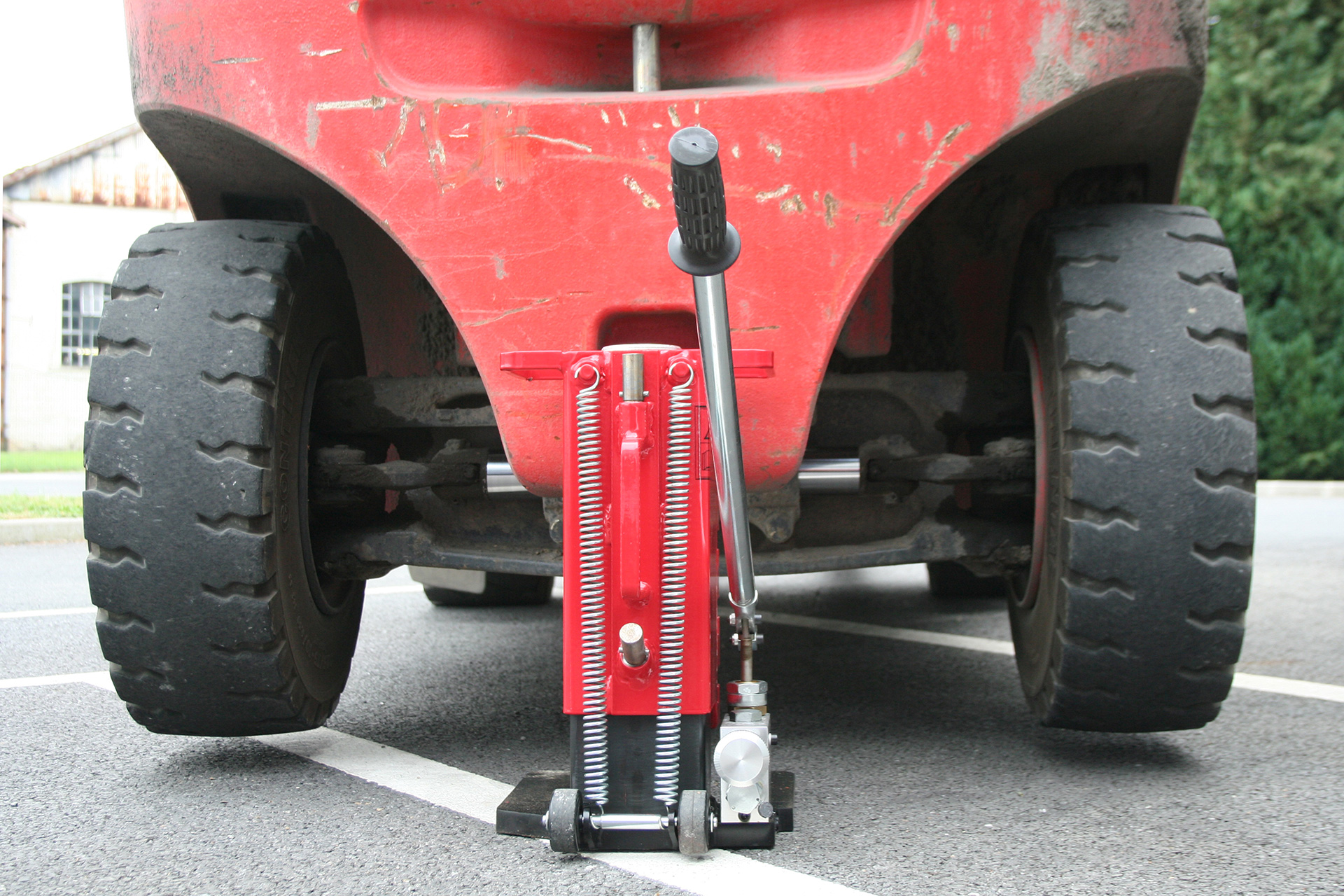

***: Hydro-pneumatic jacks for forklifts
Equipment supplied as standard with 2 stackable extensions of 70 and 120 mm.
What is a jack used for?
Once your vehicle is lifted, you can go about your maintenance operations.
SEFAC offers a whole range of jack stands and trestles to support the lifted load in complete safety.
Your vehicle being stalled, you can proceed with your work.
If you want to extract kingpins, we offer our 60t press, in manual or hydropneumatic version.
If you wish to fit and remove the wheels of your vehicle, we also have hydraulic wheel stands with a capacity of 700 kg at your disposal. These are equipped with castor wheels and double rollers on the lifting arms. The arms are adjustable in the transverse direction and, depending on the model, are tiltable to facilitate the centering of the rim holes.
How to use a jack correctly?
It is important that the ground is flat and stable.
The jack is a lifting tool, not a chock. It is therefore strictly forbidden to work under the load without a safety device such as candles or trestles.
It is forbidden to exceed the indicated load.
It is necessary to check the correct positioning of the jack.
