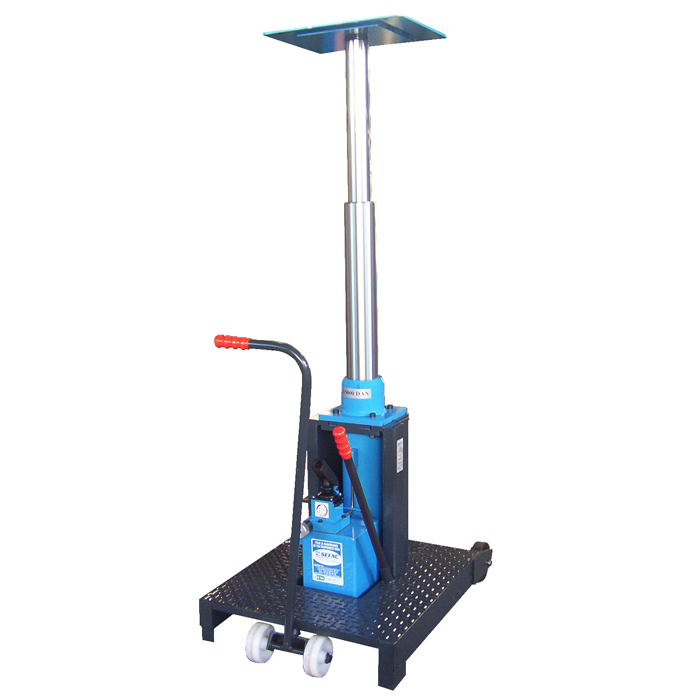

Multipurpose lifting jack - 15t
CFA 6150 / CFH 6150 / CFM 6150
SEFAC offers a range of multipurpose jacks for lifting vehicles with a capacity of 15t with lifting heights ranging from 850 mm to 1,135 mm. The multipurpose jack is placed directly on the pit floor and is used by professionals with no suitable pit for rolling a jack. The jack is easily moved along the rails by means of rollers. Its U shaped structure makes it possible to lift a vehicle by an axle as well as to disassemble, reassemble and handle heavy gearboxes without difficulty by adding a swivel head.
This equipment has been designed to ensure maximum safety through the use of a speed limiter, a safety valve and a deadman’s lowering valve.
SEFAC’s multipurpose jacks are available in three versions. Please refer to the technical chart.
- Manual lifting *
- Oleopneumatic lifting **
- Manual + oleopneumatic lifting ***
Technical characteristics
| Reference | CFM 6150 * | CFA 6150 ** | CFH 6150 ** |
| Capacity | 15t | 15t | 15t |
| Height min | 850 mm | 850 mm | 850 mm |
| Height max | 1 985 mm | 1 985 mm | 1 985 mm |
| Stroke | 1 135 mm | 1 135 mm | 1 135 mm |
| Diam. 1° piston | 110 mm | 110 mm | 110 mm |
| Diam. 2° piston | 80 mm | 80 mm | 80 mm |
| Diam. pebbles pit side | - | - | - |
| Lenght pebbles pit side | - | - | - |
|
Diam. wheels |
150 mm | 150 mm | 150 mm |
|
Lenght |
950 mm | 950 mm | 950 mm |
|
Width |
720 mm | 720 mm | 720 mm |
|
Weight |
287 kg | 287 kg | 287kg |
|
Pump |
Manual | Manual + oleopneumatic | Oleopneumatic |
* The manual version, the CFM 6150
The CFM 6150 version is the manual version of this reference. Also lifting (approaching the load or lifting the load) is done manually. It is equipped with a 2-speed pump (first speed for approach, second speed for loaded lifting).
** The version with pneumatic approach, the CFA 6150
The CFA 6150 has in addition to the CFM 6150 version a fast pneumatic approach, which will allow you to automate the lifting of the mixed cylinder until it is in contact with the load. Requires a compressed air supply of 5 to 7 bars.
*** The hydropneumatic version, the CFH 6150
The CFH 6150 is the fully automated version of this reference. In a perfectly automated way, the oleopneumatic variant allows rapid approach and effortless lifting of loads by pressing a push button as well as rapid lowering of the ram loaded or unloaded. Requires a compressed air supply of 8 to 12 bars.
