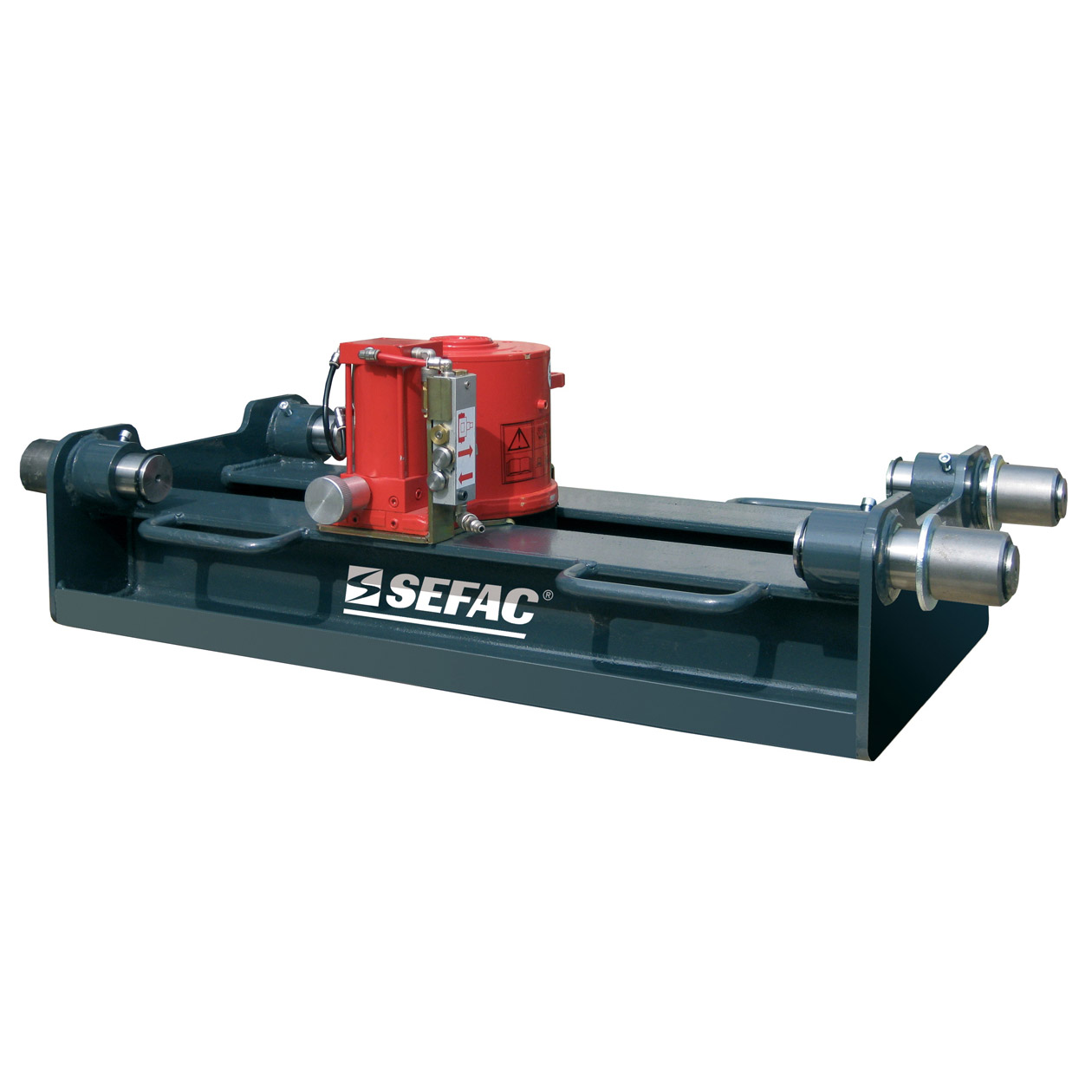

Hydraulic jack - 15t
CBH 6715
SEFAC offers the CBH 6715 jack with a lifting capacity of 15t to lift heavy duty vehicles over a very low clearance height. The jack can move laterally over the width of the pit (less than 260 mm) to simplify your maintenance operations.
SEFAC++ features
- Delivered with a 150 mm riser.
- Supplied with a head for an axle housing
- Lateral displacement of the hydraulic jack
- Deadman’s control
- Frame made to fit the pit
This equipment is made to measure to fit your workshop pit (max. width of the pit: 1,300 mm).
Contact our experts to discuss your project.
Technical characteristics
| Reference | CBH 6715 |
| Capacity | 15t |
| Lenght min | 800 mm |
| Width max | 1 300 mm |
| Pit depth min | - |
| Stroke | 190 mm |
| Weight | 100 kg |
| In between spacing min | - |
| In between spacing max | - |
| Motorisation | - |
