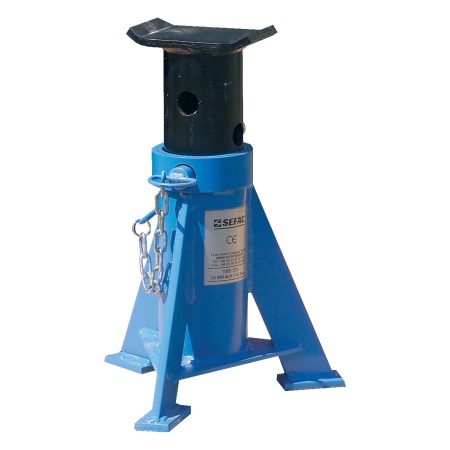

Axle stand
SEFAC has designed a wide range of axle stands to safely wedge and stabilize all loads during your maintenance work.
SEFAC axle stands are available in different lifting heights from 310 mm to 2115 mm and can support loads from 6t to 15t.
SEFAC axle stands are essential items of equipment for any workshop. This additional equipment allows you to secure and stabilize your vehicle so that you can reuse your SEFAC mobile column lifts to lift other vehicles in your workshop.
SEFAC has developed the TBP530R stand which is even easier to set up using its integrated spring. It has been designed with an extension screw for more accurate adjustment (stroke: 150mm, diameter: 190mm)
SEFAC++ features
- Optimum stability
- Versatility
- Reliability
- Sturdiness
- Maximum safety
Technical characteristics
| Reference | TBE 521 | TBE 522 | TBE 523 | TBE 527 | TBE 528 | TBP 530R |
| Capacity | 14t | 14t | 14t | 6t | 10t | 15t |
| Height min. | 310 mm | 490 mm | 695 mm | 1 130 mm | 1 390 mm | 1 295 mm |
| Height max. | 450 mm | 745 mm | 1 120 mm | 1 845 mm | 2 115 mm | 1 995 mm |
| Lenght | - | - | - | - | - | - |
| Stroke | 140 mm | 255 mm | 425 mm | 715 mm | 725 mm | 700 mm |
| Positions | 5 | 8 | 12 | 10 | 10 | 10 |
| Weight | 15 kg | 24 kg | 30 kg | 58 kg | 64 kg | 54 kg |
