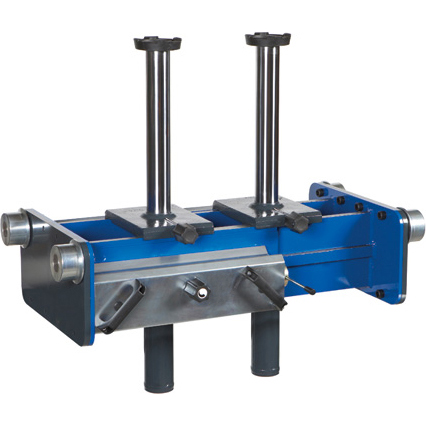

Hydraulic jack - 10t
CBH 6710
SEFAC offers the CBH 6710 jack with a capacity of 10t and a stroke of 420 mm for pit maintenance operations.
The telescopic frame of the CBH 6710 jack easily adjusts to all workshop pits without changing the existing pit structure.
SEFAC’s hydraulic jacks are fitted with two jacks for greater stability, efficiency and safety during use. These jacks may either be used separately or at the same time to raise one side or both sides of the vehicle and correct any difference in level between the gripping points (max. 10t per jack).
SEFAC++ features
- Deadman’s control
- Optimum safety
- Maximum stability
- Easy to implement
Technical characteristics
| Reference | CBH 6710 * |
| Capacity | 10t |
| Lenght min | 590 mm |
| Lenght max | 1 410 mm |
| Pit depth min | - |
| Stroke | 420 mm |
| Weight | 220 kg |
| In between spacing min | 200 mm |
| In between spacing max | 1 160 mm |
| Motorisation | - |
| Options |
2 different types of plates, V-shaped or U-shaped2 types of extensions (100 mm and 200 mm) |
*Air pressure required: 8 to 12 bar.
