Hydraulic workshop press
SEFAC offers a wide range of workshop presses for industry and heavy duty vehicle repair shops. These machines are a must in your workshops and will greatly ease your maintenance operations.
They are fitted with a mobile transverse actuator as well as a system for raising and lowering the motorized table using the actuator of the press via a chain-driven movement transmission.

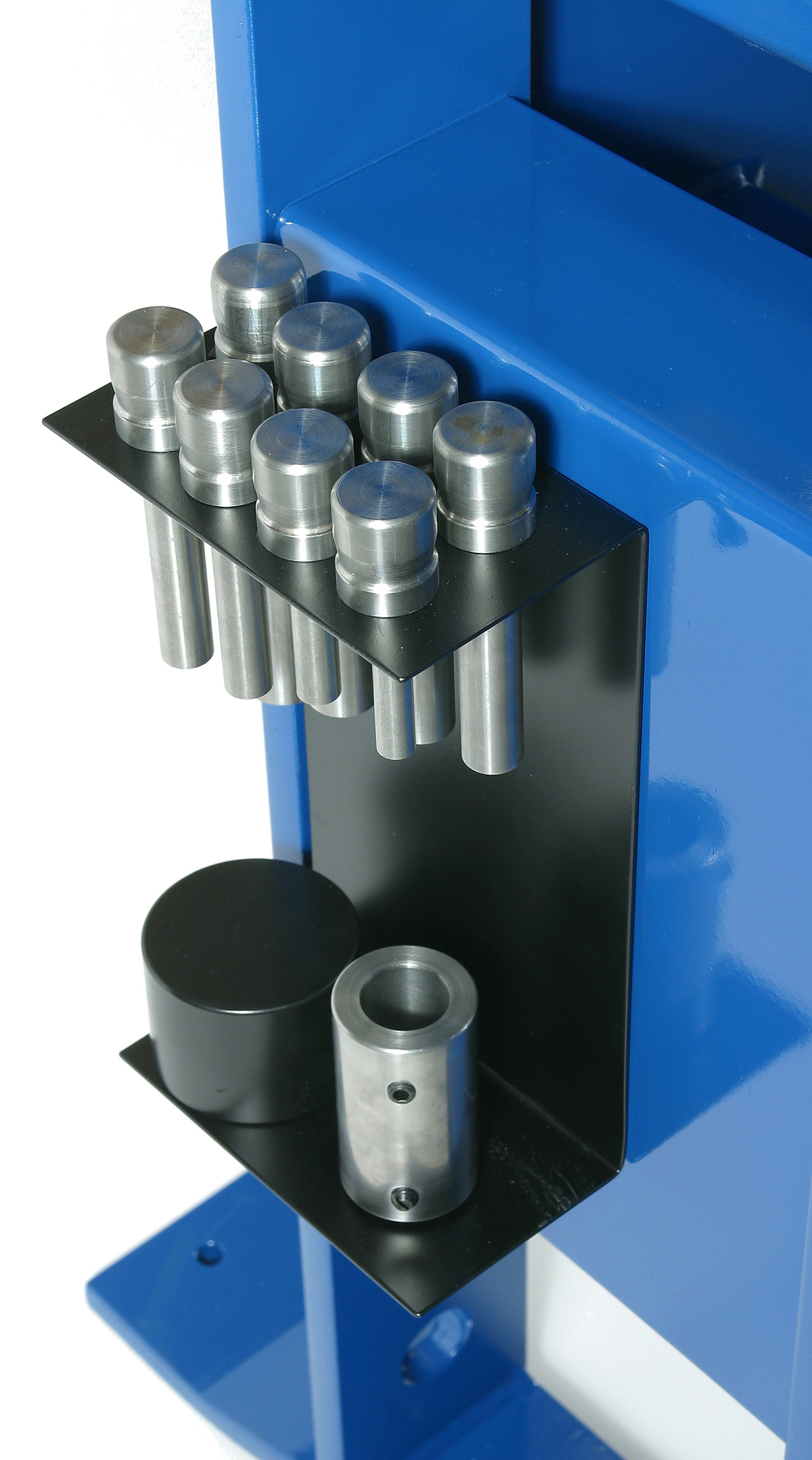

The presses are delivered with 2 removable pressure blocks allowing the installation of different mandrels.

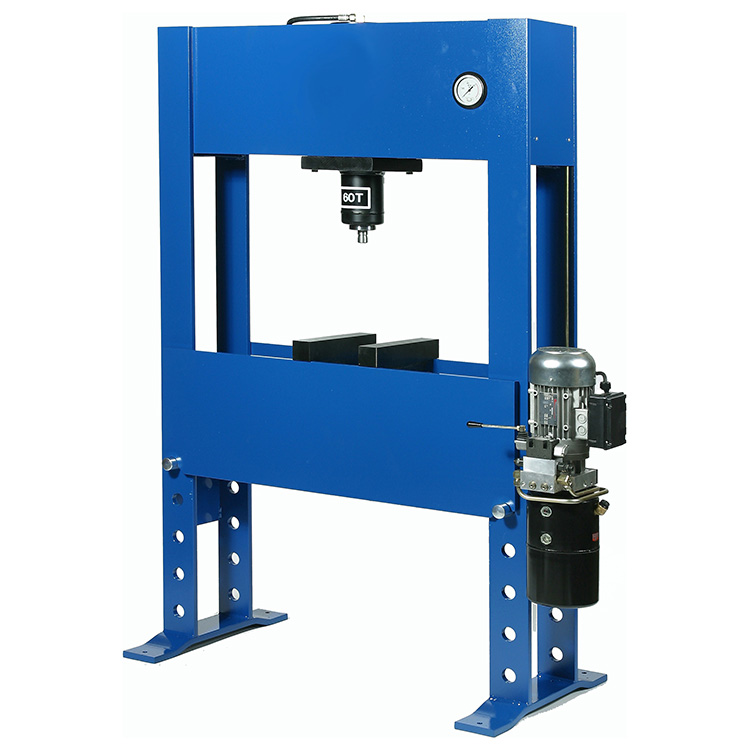

Depending on the version, SEFAC presses can be equipped with a manual pump with quick pneumatic approach or an electrohydraulic pump with 1 or 2 speeds.

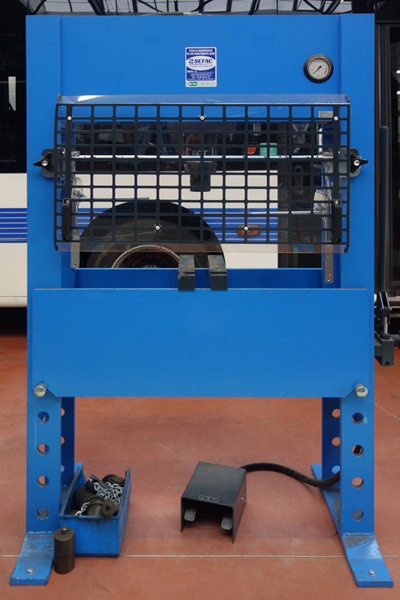

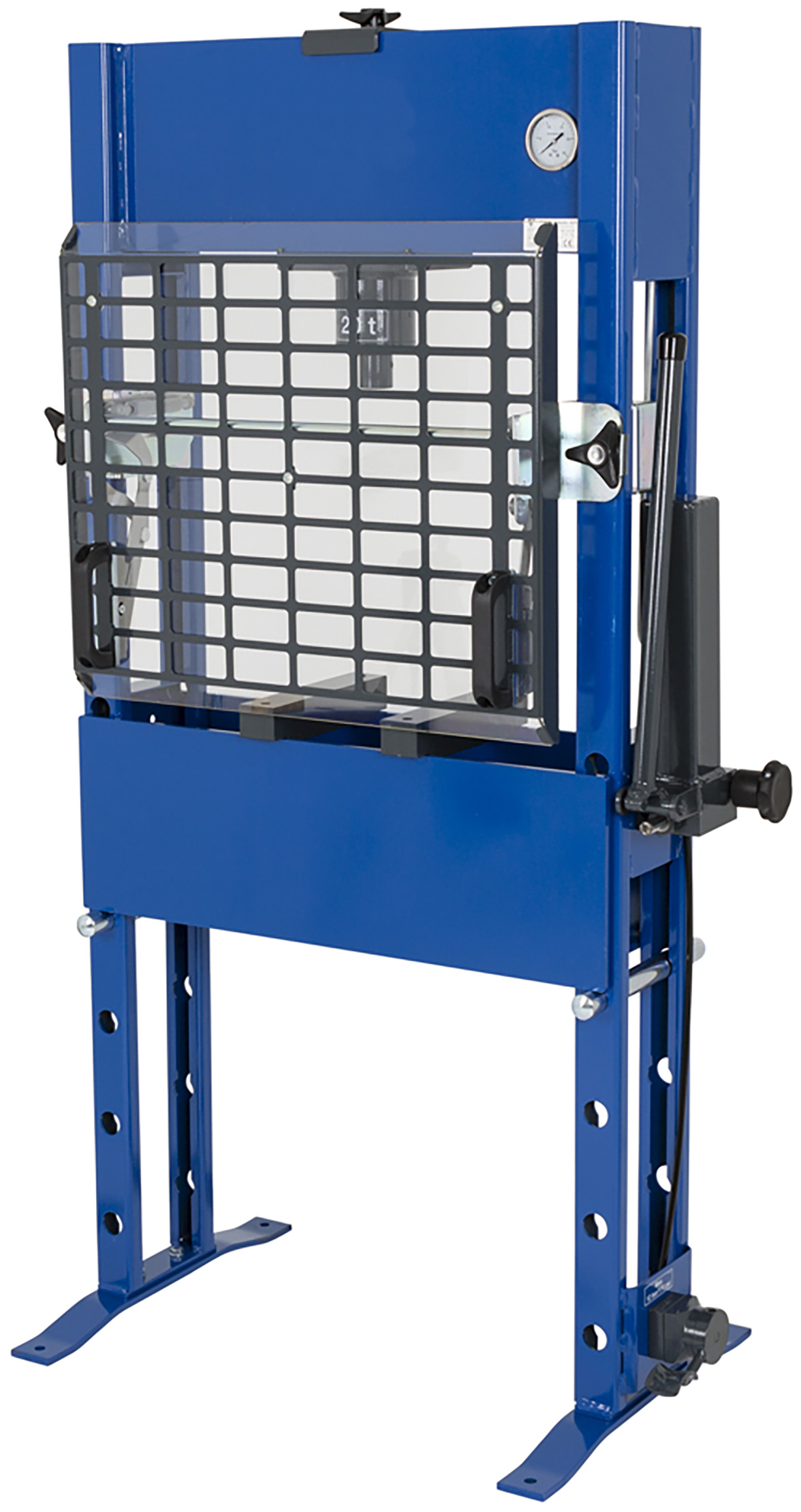

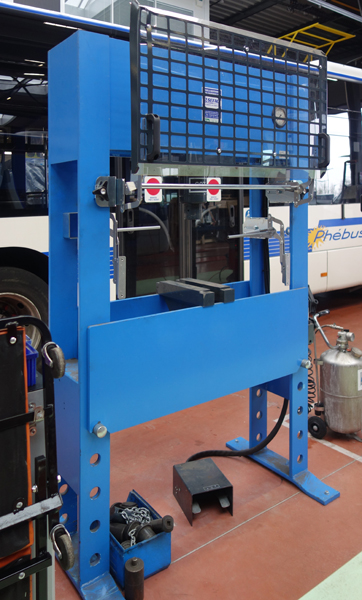

As an option, the presses can be fitted with a protective screen which is essential for safety.
Technical characteristics
| Reference | APA 9025H | APA 9040H | APA 9040EH1-D | APA 9060H | APA 9060EH1-D | APA 9060EH2-D | APA 90100H | APA 9010EH2-D |
| Capacity | 25t | 40t | 40t | 60t | 60t | 60t | 100t | 100t |
| C | 220 mm | 265 mm | 265 mm | 310 mm | 310 mm | 310 mm | 300 mm | 300 mm |
| D | 150 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| E | 105-780 mm | 85-785 mm | 85-785 mm | 180-780 mm | 180-780 mm | 180-780 mm | 75-675 mm | 75-675 mm |
| F | 1 620 mm | 1 740 mm | 1 740 mm | 1 982 mm | 1 982 mm | 1 982 mm | 2 042 mm | 2 042 mm |
| G | 130 mm | 215 mm | 215 mm | 259 mm | 259 mm | 259 mm | 325 mm | 325 mm |
| L | 135 mm | 140 mm | 140 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| J* | 9,2 | - | 6,1 | - | 4,2 | 10 | - | 6,2 |
| K** | 4,3 | - | 7,9 | - | 5,9 | 14,5 | - | 8,3 |
| Weight | 135 | 425 | 445 | 625 | 630 | 635 | 1 200 | 1 215 |
*J: Cylinder speed in mm/s for electro-hydraulic press
**K: Cylinder return speed mm/s for electro-hydraulic press
Technical diagram
Explanations concerning the nomenclature of the pumps:

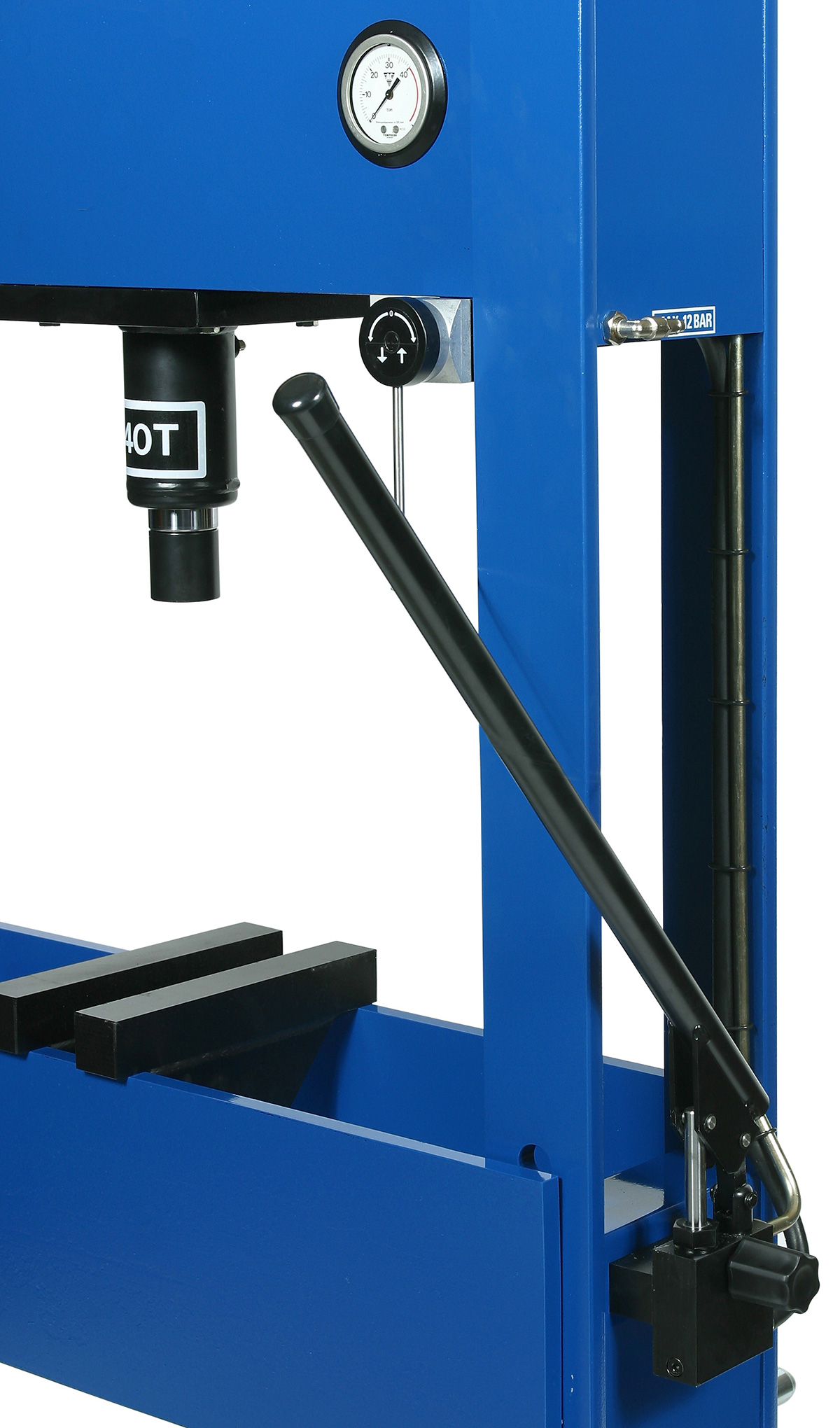

- H: standard model fitted with a manual pump with rapid double-acting pneumatic approach, pedal control
- EH1: model fitted with a single-speed electro-hydraulic pump
- EH2: model fitted with a two-speed electro-hydraulic pump
- D: model fitted with a double-acting cylinder
The EH model is equipped with a double-acting cylinder and a three-phase motorization in 3×400 V, operating at a frequency of 50/60 Hz. An adaptation of the three-phase motorization in 3×230 V and at a frequency of 50/60 Hz is possible.
The EH model is also available with a 230 V or 400 V single-phase motor, at a frequency of 50/60 Hz.
